Encoder's and Dro Scales | MAGNETIC SCALES



Magnetic systems for no-contact measurements of accurate linear displacements. Small-sized sensors. Stainless steel support for magnetic band equipped with bi-adhesive tape for an easy and economical fixing.

Max. frequency 300 kHz and resolution range up to 0.5 µm. Traversing speed up to 12 m/s and max shock resistance. 1000 m/s2 (11 ms). IP 67 protection DIN 40050/IEC 529 as standard.
MTS	High-precision reading system with SQUARE-WAVE OUTPUT
MTR	High-precision miniaturized reading system with SQUARE-WAVE OUTPUT
MTV	High-precision reading system with SINE-WAVE OUTPUT (1 Vpp)

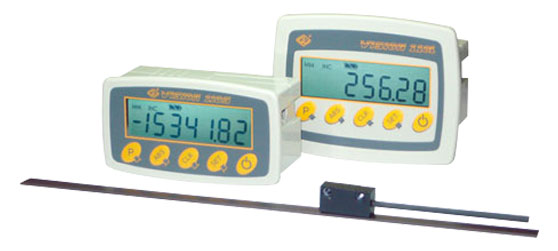

VISION 110	Digital readout with magnetic sensor
MP	Magnetic bands for MTS, MTV and MTR sensors
ACCESSORIES	Stainless steel cover (CV103) for magnetic band and aluminium support (SP202) for operating machine
