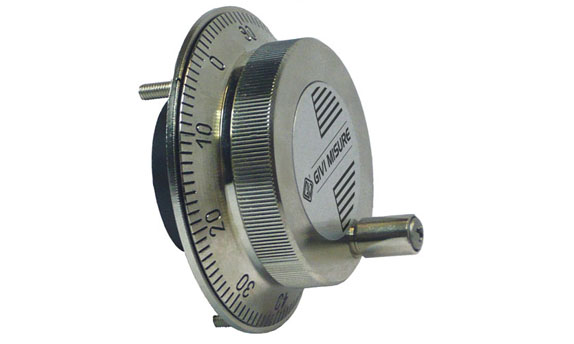

| VN413 - Electronic handwheel |
 |
- Optical rotary encoder of small overall dimensions.
- Bi-directional signals with zero pulse.
- Up to 500 pulses per revolution.
- High rotational accuracy.
- Flange and cover made of zamak.
- Cable output in radial position.
|
|
VN413 FQ Electronic handwheel - round flange
|
| Available pulses |
50 - 100 - 500 ppr |
 |
| Fixing |
no. 4 screws TPS M5 |
| Cable output |
radial |
| Connection |
cable - terminal board |
| Power supply |
5 V ± 5% or 12 ÷ 24 V ± 5% |
| Protection class |
IP 40 |
| Output |
LINE DRIVER |
| Max. frequency |
50 kHz |

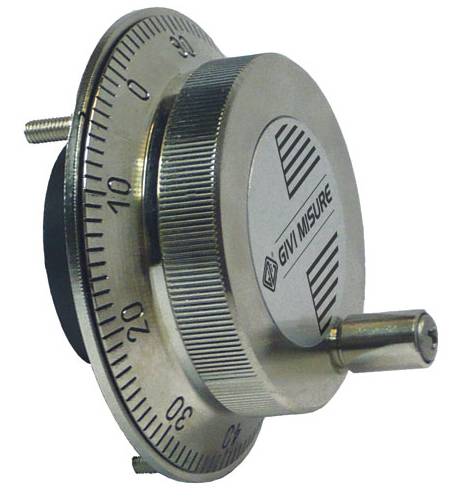

VN413 FT Electronic handwheel - round flange
|
| Available pulses |
50 - 100 - 500 ppr |
 |
| Fixing |
n. 3 viti M4x10 a 120° |
| Cable output |
radial |
| Connection |
cable - terminal board |
| Power supply |
5 V ± 5% or 12 ÷ 24 V ± 5% |
| Protection class |
IP 40 |
| Output |
LINE DRIVER |
| Max. frequency |
50 kHz |
|
|
