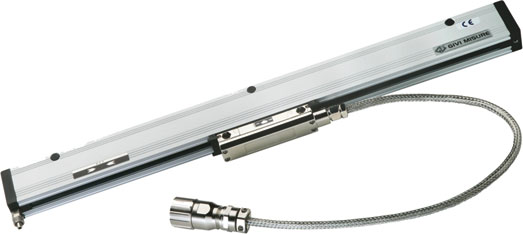

Encoder's and Dro Scales | OPTICAL SCALES
| |
 |
| High precision of gratings whose linear thermal expansion is suitable to the application required. Measuring lengths up to 30 m and resolutions up to 0.1 µm. Certificate of metrological inspection supplied with each scale. |
|
| Optical scales are manufactured in compliance with strict quality standards. The range includes six different models. The product literature, which can be supplied on request, focuses the high quality and reliability of products |
| ISA 2320 |
Incremental optical scale of reduced size, to allow installation on small machine-tools or for applications with limited installation space. |
| SCR 3923 |
Multipurpose incremental optical scale of small overall dimensions for applications on Machine tools or operating machines. Standard or MODULAR versions available. |
|
PBS-HR |
Self-aligned incremental optical scale, best suited for applications on SYNCHRONIZED PRESS BRAKES |
| GMS |
Incremental modular optical scale, best suited for LONG STROKES. Sine-wave 1 Vpp or TTL signal output. |
| NCS |
Incremental optical scale with glass measuring support designed for CNC APPLICATIONS. Programmable resolutions up to 0.1 µm. Sine-wave 1 Vpp or TTL signal output. |
| NCH |
EXPOSED incremental optical scale, with no contact, of small overall dimensions, for coordinate measuring machines. |
|
