Encoder's and Dro Scales | ROTARY ENCODERS

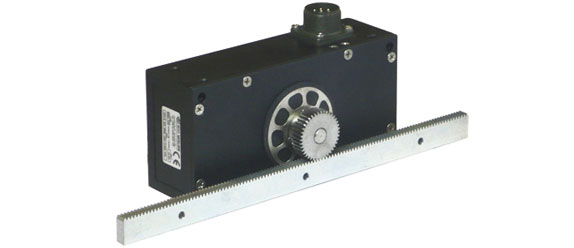

EPC - Rack and pinion encoder
  • Optical rotary encoder.
  • Bidirectional signals with zero reference.
  • Up to 2500 pulses per revolution.
  • Connector output either in axial or radial position.
  • Thrust spring positioning either to the left or to the right.

EPC   Rack and pinion encoder
Available pulses 5 ÷ 2500 ppr
Fixing no. 4 screws M6
Shaft Ø mm 8 - 10
Connector output axial - radial
Thrust spring positioning left - right
Power supply 5 V ± 5% or 12 ÷ 24 V ± 5%
Output LINE DRIVER / PUSH-PULL
Max. frequency 100 kHz
